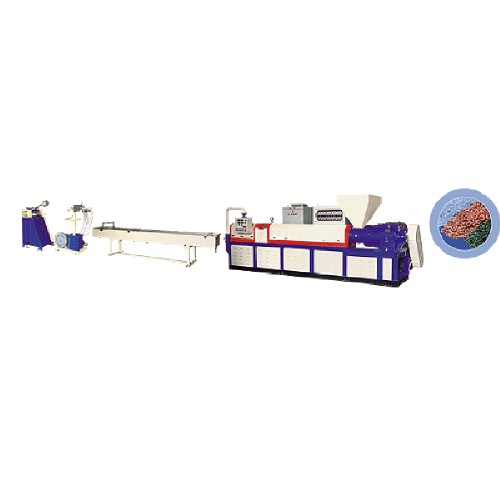

HIGH PERFORMANCE MASTERBATCH EXTRUDER

HIGH PERFORMANCE MASTERBATCH EXTRUDER

Model:
KK-75TP

Detail Specifications / Descriptions

1. Screw: screw is made of special steel alloy, and it can be designed for different raw materials.
2. Barrel: barrel is made of special steel alloy, and is equipped with aluminum thermal foil with air cooling system.
3. Gearbox: gears are made of steel alloy with heat treatment and are finished with surface precision grinding. By using oil injection cooling system, it reduces noise when operating under high RPM and enhances the life span of gears.
4. Degasification device can eliminate the moisture, gas and vapor generated by PVC resins during production process.
5. Control system is using SSR contactless switch, and PID system for temperature control.
6. Transmission Motor: DC Motor, low and high speed power output, RPM and torque and can be uniformly maintained.
