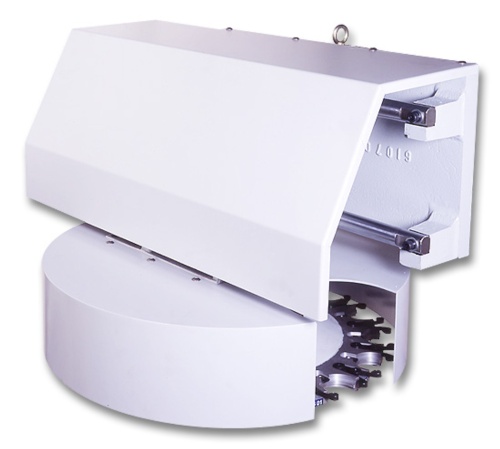

Carrousel Type Magazine

Carrousel Type Magazine

Model:

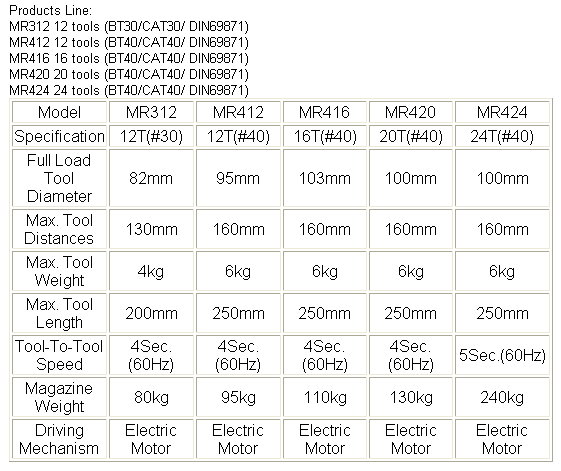

MR312,MR412,MR416,MR420,MR424

Country of Origin:

Taiwan

Detail Specifications / Descriptions
Auto CAD download MR312, MR412, MR416, MR420, MR424

1.Sliding bracket is materialized by aluminum alloy. Lightweight design promotes the sliding smoothness.
2.Disk drum is materialized by aluminum alloy. Lightweight design reduces the loading on sliding bracket and enhances the rotating accuracy.
3.Moving by pneumatic cylinder reduces the possibility of collision.
4.Patented air-cushion design makes the changing speed stably.
5.The cone roller bearing was installed to increase the loading capacity and quality performance.
6.The shaft of the magazine disc was tightened by lock nuts. The assembly and maintenance are easily maintenance.
7.Tool-holding position is one-piece design with disk drum. It is completed by accuracy indexing machining operation. The highest accuracy will be enhanced and tool-changing operation will be smoother.
8.Spring tool holding design makes clamping/unclamping of the heavy/big tool as stable as possible.
9.Self-lubricated bearing was installed inside the sliding bracket increasing the smoothness of whole system.

Auto CAD download MR312, MR412, MR416, MR420, MR424


Company:

MAGPRO TECHNOLOGY CO., LTD.
