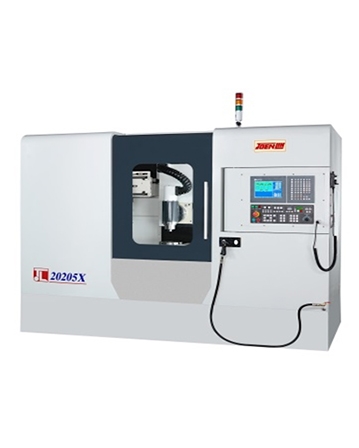

High Precision 5 Axis Milling & Grinding Machine

.tg{border-collapse:collapse;border-spacing:0;border-color:#ccc}.tg td{font-family:Arial,sans-serif;font-size:14px;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#ccc;color:#333;background-color:#fff}.tg th{font-family:Arial,sans-serif;font-size:14px;font-weight:400;padding:10px 5px;border-style:solid;border-width:1px;overflow:hidden;word-break:normal;border-color:#fff;color:#333;background-color:#ccc}.tg .tg-0kcn{background-color:#9b9b9b;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-zs35{background-color:#efefef;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-2bev{border-color:#656565;text-align:left;vertical-align:top}.tg .tg-dsic{background-color:#fff;border-color:#656565;text-align:left;vertical-align:top}.tg .tg-qs0d{background-color:#efefef;color:#000;border-color:#656565;text-align:left;vertical-align:top}td.tg-y698{background-color:#ebebeb;font-weight:700}td.tg-0pky{font-weight:700}td.tg-1{font-weight:100}





Model
20205X


General Capaity


Table size(Max. working piece size) (WxL)(mm)
ψ200 (X200L)


X axis stroke (longitude)(mm)
588


Y axis stroke (cross)(mm)
283.5


Distance from spindle to table(mm)
430


X-LongitudinalMovement


Table speed(m/min)
30


WheelheadVertical Infeed


Rapid power head elevation(mm/min)
30


The Least Input Increment(mm)
0.001


Z-Cross Movement


Powered Crossfeed(mm/min)
30


Z axis stroke (vertical)(mm)
600


Spindle


Spindle speed(rpm)
24000


spindle tool specification
HSK-E40


B axis


B axis rotary angle(degree)
(+30 °~-110 °)


C axis


B axis rotary angle(degree)
0°~360


Min. angle graduation(degree)
0.001 °


tool


Max. tool length(mm)
150


Motor


Motor stator spindle(kw)
4.5


longitude servo motor (X axis) (kw)
1.5

Vertical servo motor (Z axis) (kw)
3.5

Cross servo motor (Y axis) (kw)
1.5


Sound pressure level


Sound pressure level dB(A)
Below 78dB (A)


Weight


Machine net weight(Kgs)
3500


Machine floor space(LxWxH)(mm)
2700X2000X2150
