Magnetic Drill
- Model:
- TF-410E/TF-500E/TF-520E
Detail Specifications / Descriptions

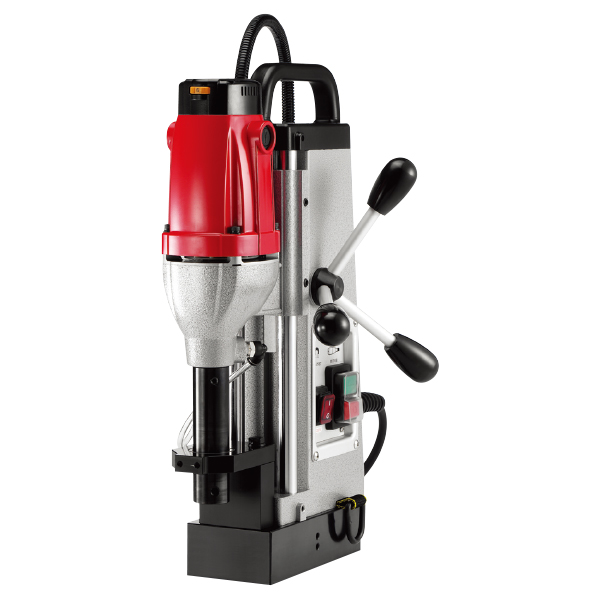

Portable magnetic core drilling machine

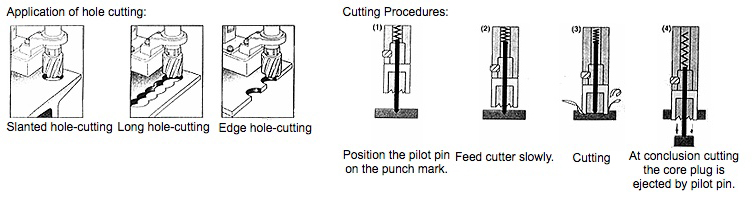

Application
Bearing bracket for precision alignment of the spindle.
Overload protection device for the motor and cutter.
Powerful electric magnetic holding power.
Two-speed gear box plus variable speed control
Reliable and powerful motor
Adjustable cutting oil system for both horizontal & vertical drilling.
Optional Gutter sliding guard for isolating the cutting chips.
Built-in clutch for motor protection.
Motor can not be switched on until magnet is activated, double insulation.
All controls mounted at rear side for easy operation and access.
Soft start for the motor.
Specification
TF-410E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Magnetic Adhesion
Weight
1200W
230V/50Hz110V/60Hz
660/310
ø12mm-ø40mm
50mm
up to ø1mm-ø13mm with Drill chuck
1200kg
16kg
TF-500E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Magnetic Adhesion
Weight
1800W
230V/50Hz110V/60Hz
High 640/310Low 350/180
ø12mm-ø50mm
50mm
19mm Weldon shank
1800kg
24kg
TF-520E
Power Input
Voltage
RPM
Core Dril
Max Cutting Depth
Twist Drill
Magnetic Adhesion
Weight
1800W
230V/50Hz110V/60Hz
Two SpeedsHight 640/310Low 350/180
ø12mm-ø50mm
50mm
Up to ø23mm with Morse Taper
1800kg
25kg
