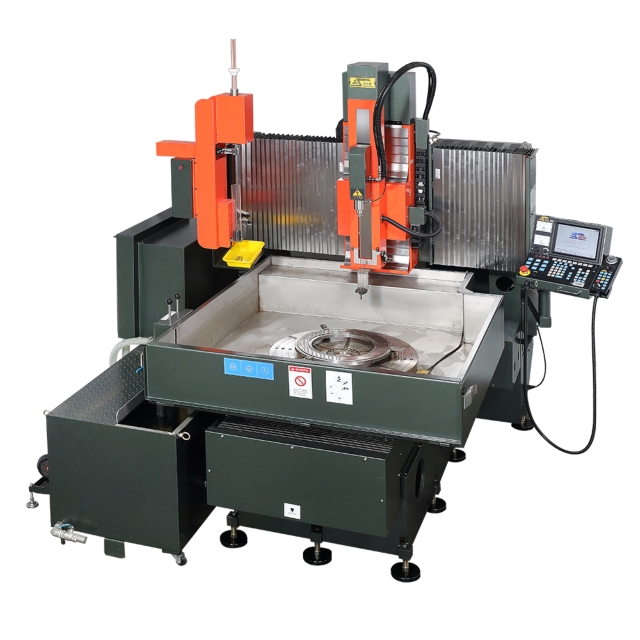

7 Axis Control CNC Deep Hole Drilling EDM
- Model:
- SD966
Detail Specifications / Descriptions
Tire Mold Dedicated Hole Drilling EDM
- 1. X、Y、Z、C、U、V、B 7 axis use AC servo motor. High efficiency and precision.
- 2. Automatic Brass Change System (PATENT). Maximum brass store 60 pcs. Can be 24hr uninterrupted machining ,improve machine effectiveness.
- 3. Using brass length 600 mm. Reduce the loss of brass.
- 4. Vsing immersion processing. Reduce drilling time.
- 5. Processing fluid using ionized water ,with circulation filtration system. High machine effectiveness.
- 6. V axis ±20°,U axis 0°~360° combined with computer automatic control. Suitable for all tire mold vent hole processing.
- 7. X、Y、Z、C axis design using linear guide ,with precision ball screw.
High-precision and long life. - 8. Use 64 bit industrial computer (IPC) , 8 axis motion control card. high stability and reliability.
- 9. Option addition SKM serve system. Via the internet instant monitoring machine processing, program file transfer.
- 10. Use dialogue editor, Simple and easy to understand. Also combined ISO code acceptable CAD/CAM format files can be widely used.
- 11. Special machining code can be set up to 6 different depth and drilling EDM.
Condition for each hole processing. To raise substantially for machining efficiency.
Specification | SD 966 (Immersion) |
---|---|
X-travel | 900 mm |
Y-travel | 600 mm |
Z-travel | 750 mm |
Backslide travel | 300 mm |
B-travel | 360° |
U-travel | 360° |
V-travel | ±20° |
Table dimension | Ø700 mm |
Work table dimension | 1250x1300x200 mm |
Maximum workpiece dimension | Ø1100 mm |
Maximum distance od table quill (Guide) | 320 mm |
Electrode pipe dimension | Ø0.3~Ø3.0 mm (special Ø0.1~6.0 mm) |
Automatic brass tube replacement electrode dimension (option) | 400mm銅管Ø0.8~Ø3.0 600mm銅管Ø01.0~Ø3.0 (Special specifications are negotiable) |
Processing fluid capacity (pure water) | 45 Liter |
Water tank capacity | 500 Liter |
Filter Element | 2 pcs |
Machine weight | 3330 kgs |
Machine Height | 2250~2550 mm |
