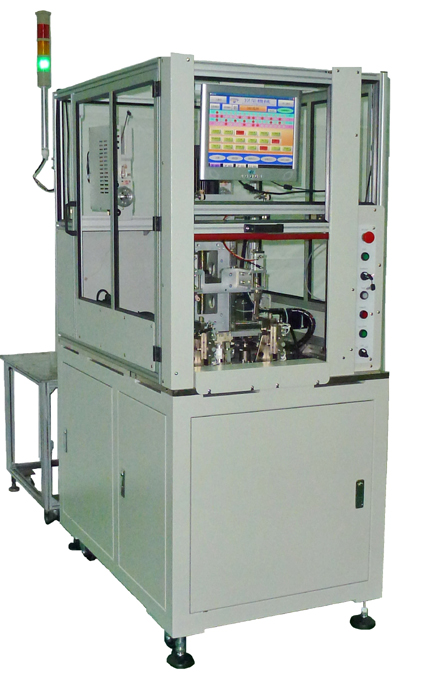

TM-2502 2 SPINDLE MOTOR WINDING MACHINE

TM-2502 2 SPINDLE MOTOR WINDING MACHINE

Model:
TM-2502
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Technical Specifications:
Number of spindles: 5-AXES/2-AXES
Control system: AC Servo Motor
Data storage: Hard Disk
Drive axes: 5-AXES
Spindle Pitch(mm): 250mm
Maximum wire(mm):0.7mm
Maximum of Winding speed: 350RPM(According to skeleton size and wire diameter to adjust to change)
350RPM(is 0.25 diameter.55mm in the case of the vertical distance)
Winding Direction: CW/CCW
Maximum Travel Distance X: 240 mm
Maximum Travel Distance Y: 175 mm
Maximum Travel Distance Z: 140 mm
Power supply: AC 3-PHASE 220V
Consumed power: 8KW
Machine Size: 125(L)X 80(W)x 200(H)cm
Machine Weight: 400KGS Options:
1.Electronic tensioners
2.Spool cover and tensioner shelf
