Product Information - Hydraulic thru feed type thread rolling machine
|
Click for a larger picture

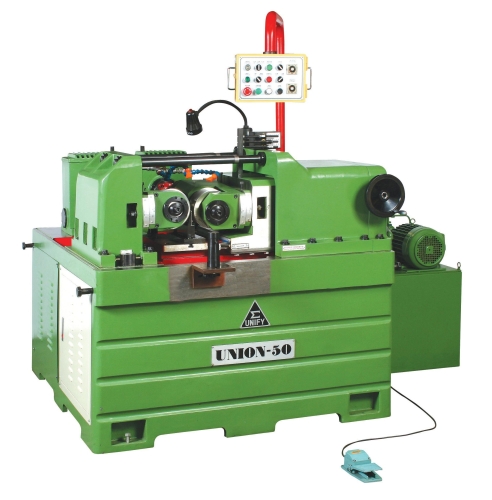

Hydraulic thru feed type thread rolling machine
|
| Product Description |
| Product Name: |
Hydraulic thru feed type thread rolling machine |
| Model: |
UM-50 (50A) |
| Country of Origin: |
Taiwan |
|
| > Detail Specifications / Descriptions |
Thread rolling machines
Thread rolling machines are used to produce screws, bolts, and tools. Thread rolling is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the thread rolling machine. The threads were formed by the pressing progress.
Threads produced by thread rolling machine provide fine surface, high production rate, greater accuracy.
The features of UM-50 (50A) thread rolling machine:
*The diameter range of threads rolled: 6 - 50mm
*Range of pitch rolled: 1.0P - 6.35P
*Max rolling length for in feed: 148mm
*UM-50 roller shaft: 54mm
*UM-50A roller shaft: 70mm
1. Thru feed and in-feed (plunge feed) both available
2. Powerful rolling pressure: the feeding is driven by hydraulic unit
3. Solid structure: case iron FC-25 frame
4. Steady feed motion: Ground square rail slide way can avoid the vibration and wear away.
5. Perfect transmission: thread ground worm & phosphoric brone worm wheel gear are matched completely and smooth
6. Specially suitable for: Long length screws, ACME screws, Ball Screws, machine parts, tool and automobile / motorcycle parts.
|
|
