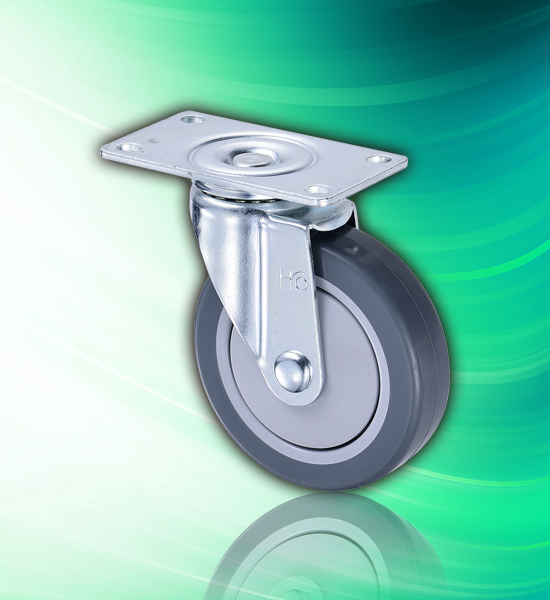

High Quality General Use 4 inch TPR Swivel Caster
Hot- Model:
- BX415-TPR-1
- Country of Origin:
- Taiwan
- Material:
- TPR (Thermoplastic Rubber)
Detail Specifications / Descriptions
Type:Swivel Caster
Wheel Diameter(G) x Width:4x1 inch (100x25 mm)
Height(H):123 mm
Load Capacity:150 kg
Bolt Hole Center(AxB):40x82 mm
Plate Size(DxE):58x100 mm
Bolt Hole(P):Φ9
Bearing:#6200 Single Ball Bearing
Fork Structure:Pressed Steel；Zinc Plated
Eccentricity:26 mm
Wheel Core:Plastic Core
Weight:0.62 kg
Wheel: Thermoplastic Rubber (TPR) which is quiet when moving and is suitable for medical, laboratory equipment.
Wheel Core: Plastic Core which is lightweight, economical and non-conductive.
Bearing: #6200 single ball bearing to improve the rolling.
Fork: Swivel fork with top plate. Pressed steel and integrally formed. Zinc plated.
Plastic wheel covers to prevent the dust, water and other materials.
