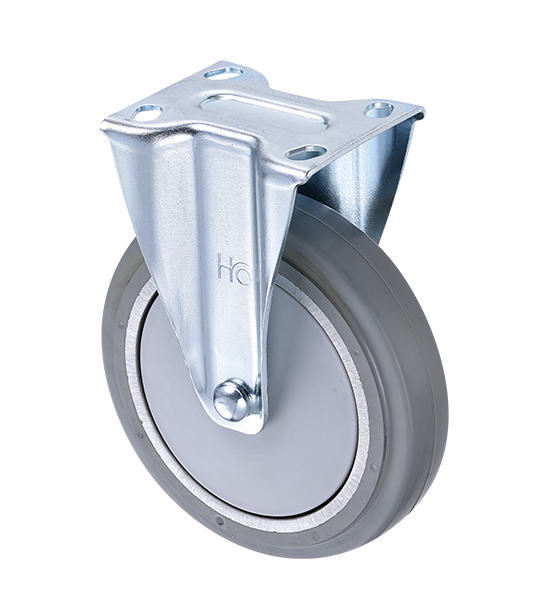

Heavy Moving Machine Industrial Rigid Rubber Wheel 6 inch
- Model:
- EB150FX-GA
- Country of Origin:
- Taiwan
- Material:
- Elastic Rubber
Detail Specifications / Descriptions
Type: Rigid Caster
Wheel Diameter x Width: 6x1¼ inch (150x32 mm)
Overall Height: 186 mm
Load Capacity: 250 kg
Bolt Hole Center: 53x71 mm
Plate Size: 75x92 mm
Bolt Hole: Φ10
Wheel Bearing: #6202 Single Ball Bearing
Fork Structure: Pressed Steel；Zinc Plated
Wheel Core: Aluminum Core
Weight: 1.2 kg
Others: Plastic Wheel Cover
1. Wheel: Elastic Rubber Wheel (gray), with the features of high elasticity, good load capacity and wear resistances.
2. Wheel Core: Aluminum Core, not easy to be rusted and also increases the durability and load capacity of caster.
3. Bearing: #6202 single ball bearing to improve the rolling.
4. Fork: Rigid type. Pressed Steel and one-piece formed frame. Zinc Plated.
5. Others: Plastic wheel covers to prevent the dust, water and other materials.
