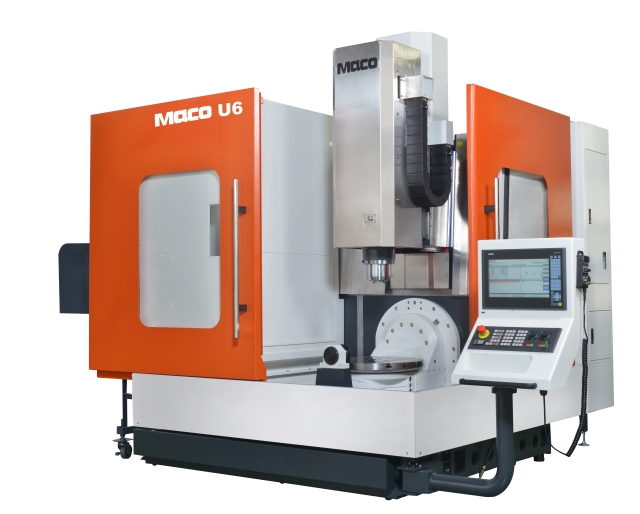

U6 5 Axex Machining Center

U6 5 Axex Machining Center

Model:
U6
Country of Origin:
Taiwan

Detail Specifications / Descriptions

U6 Series Specification
X axis travel: 620mm
Y axis travel: 520mm
Z axis travel: 460 mm
Table Size: Ø650mm

The U6 is a collection model of high-precision, high-speed, high efficiency and high-tech control technology in one, it also has the best cost performance ratio. Its design concept is through a stable standardized machine and high-reliability swivel rotary table integrated structure, B / C axis are equipped with linear scale to improve the precision of machining quality. Its excellent performance is your best choice into the field of five-axis machining.

High efficiency: It equipped with Siemens 840Dsl high-performance controller can be applied from simple to complex five-axis simultaneous machining.
High precision: X/Y/Z three-axis linear guideway + B/C axis to install high-precision linear scale/encoder
B-axis tilting range -90°~+110°
C-axis rotating range 360°
B/C axis table horizontal loading capacity 300KG
High-speed & high-torque spindle: 12,000 rpm direct drive, torque up to 60NM
Large-capacity magazine: Chain-type ATC can load 32 tools


Know more details follow E-catalogue linke:
https://drive.google.com/file/d/0B_xLYeeynk87SmUxdWlQMEg1YXM/view?usp=sharing
