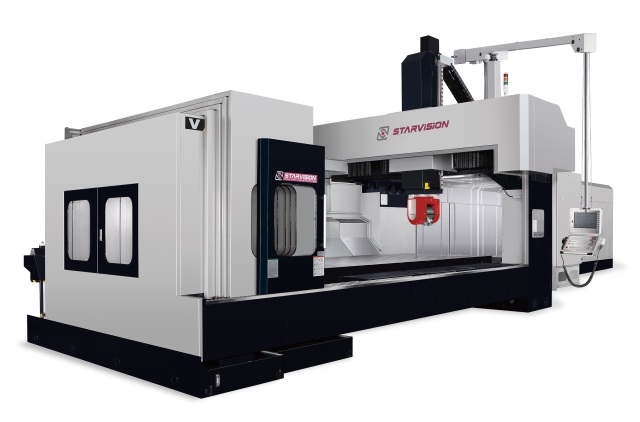

5-axis Double Column Machining Center

5-axis Double Column Machining Center

Model:
V Series
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Table size [mm] 3,000 - 10,000 x 2,000 / 2,400 / 2,800 / *3,500
Travel – Longitudinal – X axis [mm] 3,200 - 10,200
Travel – Cross – Y axis [mm] 3,100 / 3,400 / 3,800 / 4,300
Travel – Vertical – Z axis [mm] 1,000 / *1,200 / *1,500
Rapid feed rate (X/Y/Z) [m/min] 20/20/12
Spindle motor S6 (40%) [kW] 45 / *46
Spindle speed [rpm] 15,000 / *24,000
Spindle taper [ - ] HSK-A100 / *HSK-A63
Tool storage capacity [ - ] 24 / *32 / *40
* Option
