Rod Cutting & End Grinding Machine

Rod Cutting & End Grinding Machine

Model:
FLY-300/500/600
Country of Origin:
Taiwan

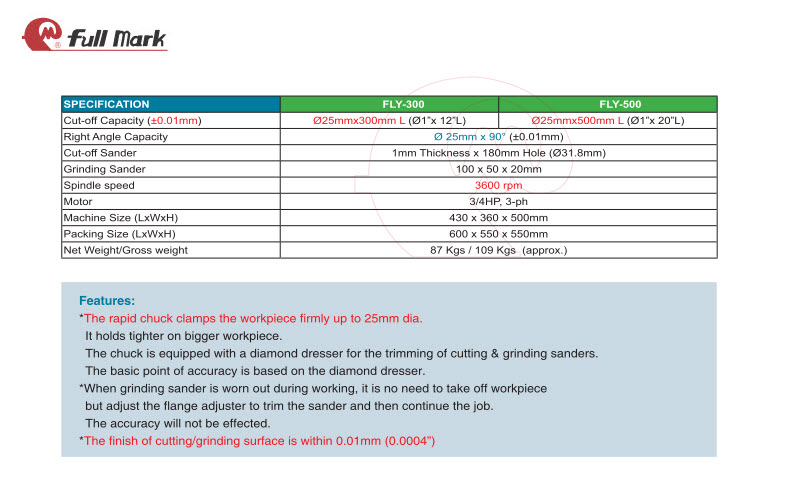

Detail Specifications / Descriptions

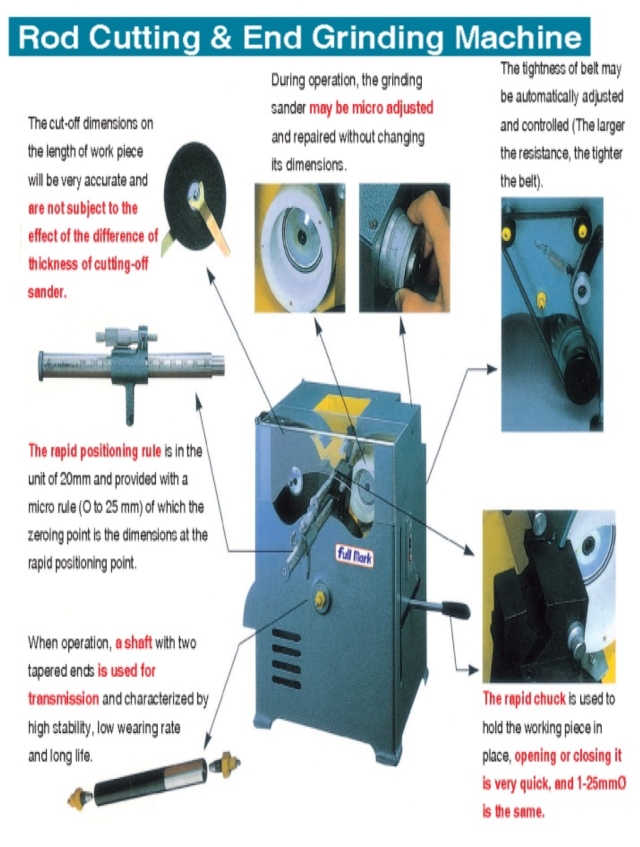

FEATURES :
◆ The rapid chuck clamps the workpiece firmly up to 25mm dia.It holds tighter on bigger workpiece.
The chuck is equipped with a diamond dresser for the trimming of cutting & grinding sanders.
The basic point of accuracy is based on the diamond dresser.
◆ When grinding sander is worn out during working, it is no need to take off workpiece but adjust the flange adjuster to trim the sander and then continue the job. The accuracy will not be effected.
◆ The finish of cutting/grinding surface is within 0.01mm (0.0004”)

Rod Cutting & End Grinding Machine
