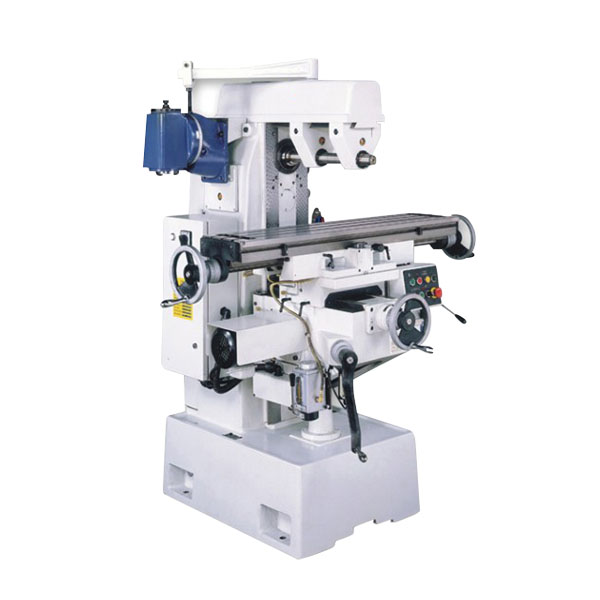

Universal Milling Machine

Universal Milling Machine

Model:

MW0800-055

Country of Origin:

Taiwan

Material:

To be advised

Color:

Final detail to be provided on formal quotation sheet

Minimum Order:

quantity negotiable- please enquire with us

Delivery Lead Time:

To be advised

Delivery FOB Port:

To be advised

Payment Condition:

T/T,Western Union

Detail Specifications / Descriptions
Features

Table Swivel R&L 45 °
Maximum Table Load: 300 kgs
Vertical Head Attachment

Description

Main casting of milling machine: made of meehanite cast iron
Delivery from Taiwan for long life working

Specification

ITEMSMW0800-055
TABLESIZE (LxW)1100 x 250
T SLOT (WxNo.xPITCH)16 x 3 x 60
SWIVEL (L & R)45 °
VERT.SPINDLE NOSE TO TABLE0 ~ 342
TRAVELX. Y. Z700 x 260 x 390
FEEDLONG.FEED RATE18-310 (6 STEPS)
LONG. RATE TRAVERSE mm/min1040
LONG. RAPID TRAVERSE mm/min290
VERTICAL
SPINDLE
SPINDLE NOSEN.S.T 40
STEPS6
SPINDLE SPEED RPM60 ~ 1100
SPINDLE NOSE TO TABLE0 ~ 342
CROSS TRAVEL OF RAM300
HORIZONTAL
SPINDLE
SPINDLE NOSEN.S.T 40
SPEED (RPM)60 ~1100 (6 STEP)
CENTER TO BOTTOM OF RAM115
CENTER TO TABLE0 ~ 390
MOTORHORIZONTAL SPINDLE3HP~4P
TABLE FEED (LONG) 3/4 HP~4P
TABLE VERT.RAPID1/2 HP~6P -1/10
COOLANT PUMP1/8 HP~2P
SIZEMACHINE (Lx Wx H)1570x 1230x 1652
NET WEIGHT (KGS)1000kgs

Standard accessories:

coolant equipment & tray
long, gear box feed
table elevating moto
adj.tools and tool box

Optional functions:

table swivel 45 ° L&R
vertical head attachment

The product pictures are for your reference only: final spec & accessories based on formal quotation
