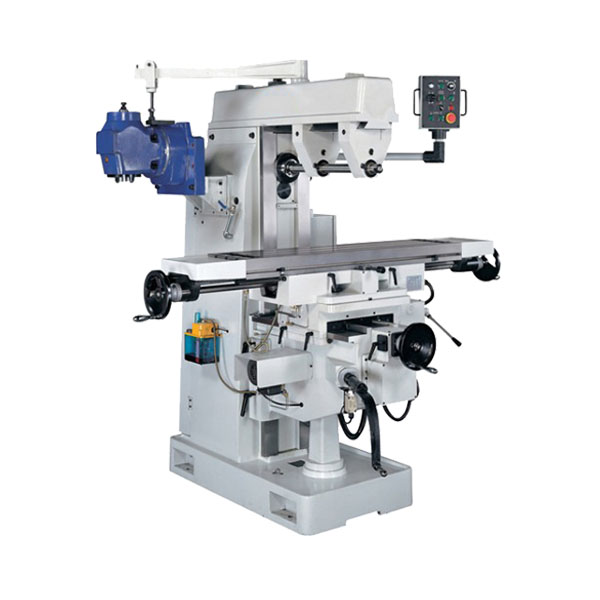

High Efficiency Universal Milling Machine

High Efficiency Universal Milling Machine

Hot
Model:
MW0800-054
Country of Origin:
Taiwan
Material:
To be advised
Color:
Final detail to be provided on formal quotation sheet

Detail Specifications / Descriptions

Features

Table Swivel R&L 45 °
Maximum Table Load: 400 kgs
Vertical Head Attachment
Y Axis inverter movement with ball screw

Description

Main casting are made of meehanite cast iron for accurate operation
Stable quality of milling machine for efficient working

Specification




ITEMS
MW0800-054


TABLE
SIZE (LxW)
1270 x 300


T SLOT (WxNo.xPITCH)
16 x 3 x 80


SWIVEL (L & R)
45 °


VERT.SPINDLE NOSE TO TABLE
0 ~ 390


TRAVEL
XxYxZ-MANUAL
930 x 400 x 450


XxYxZ-AUTO
920 x 380 x 450


FEED
LONG.FEED RATE
18-320 (6 STEPS)


LONG. RAPID TRAVERSE mm/min
1040


CROSS FEED RATE mm/min
50 ~ 2200


VERTI. RAPID TRAVERSE
360


VERTICAL
SPINDLE
SPINDLE NOSE
N.S.T 40


SPINDLE SPEED RPM
45 ~ 1100


STEPS
9


HORIZONTAL
SPINDLE
SPINDLE NOSE
N.S.T 40


STEPS
9


SPEED (RPM)
60 ~1440


CENTER TO BOTTOM OF RAM
175


CENTER TO TABLE
0 ~ 450


MOTOR
HORIZONTAL SPINDLE
5 HP


TABLE LONG FEED
3/4 HP


TABLE CROSS FEED
1/2 HP


TABLE VERT.RAPID
1/2 HP


COOLANT PUMP
1/8 HP


SIZE
MACHINE (Lx Wx H)
2150x1750x1975


NET WEIGHT (KGS)
2550kgs


CROSS WEIGHT
2700kgs




Standard Accessories:

Coolant equipment & tray
Longitudinal gear box feed
Table elevating motor
Table swivel
X, Y axis turcite B
Slide way auto lubrication pump
Adjusting tools and tool box
Vertical head attachment
Y axis inverter movement with ball screw

The product pictures are for your reference only: final spec & accessories based on formal quotation
