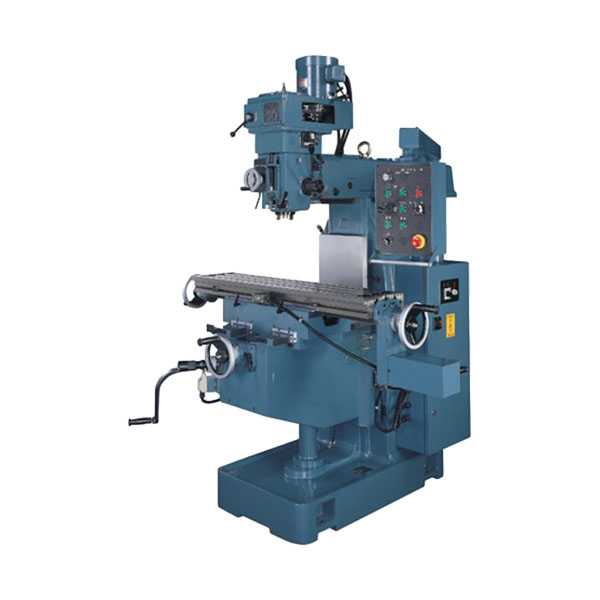

Heavy Duty Vertical Mill

Heavy Duty Vertical Mill

Model:

MW0800-045

Country of Origin:

Taiwan

Material:

To be advised

Color:

Final detail to be provided on formal quotation sheet

Minimum Order:

quantity negotiable- please enquire with us

Delivery Lead Time:

To be advised

Delivery FOB Port:

To be advised

Payment Condition:

T/T,Western Union

Detail Specifications / Descriptions
Features

Maximum Table Load: 350-400 kgs
X, Y axes ball screw
Hardened & ground table with T-slot

Description

Milling Machine of A model: with Step Speed Head; B model: Variable Speed Head
Rigid structure, made of meehanite cast iron
High quality to perform easily

Specification

ITEMS MW0800-045A MW0800-045B
TABLE Size 1200x 280 (1270x 370 OPT.)
T SLOT (WxNO.xPITCH) 16x 3x 65 (18x 3x 80 OPT.)
TRAVEL XxYxZ 700x 360x 360 (900x 360x 360 OPT.)
FEED X,Y MANUAL
Z RAPID/MIN. 1150
X,Y/MIN. VAR. 0-1800 (OPT.)
SPINDLE SPINDLE NOSE NO. 40
STEPS 16 VARIABLE
SPINDLE SPEED RPM 75-3600 80-3800
SWIVELLING ANGLE 45° (L&R)
QUILL TRAVEL 140
QUILL FEEDS/REV. 0.035/0.07/0.14
SPINDLE NOSE TO TABLE 0-500
SPINDLE CENTER TO COLUMN 185-635
CROSS TRAVEL OF RAM 450
MOTOR VERTICAL SPINDLE 3HP-2P/4P 5HP-4P
X,Y FEED DC SERVO 400W (OPT.)
RAPID VERTICAL 1HP-12P
COOLANT PUMP 1/8HP-2P (OPT.)
SIZE MACHINE (LxWxH) 1710x 1560x 2285
NET WEIGHT (KGS) 1900

Standard Accessories:

Table hardened and ground
T slot edge ground
X,Y axis ball screw C5 class
X,Y axis turcite b slide way
Vertical head auto lub. Pump
Auto slide way lub. Pump
Table elevating motor

Optional Accessories:

Coolant equip. with chip tray
X,Y Axis DC Servo Motor
X Axis travel in 900mm
Y Axis travel in 500mm

The product pictures are for your reference only: final spec & accessories based on formal quotation
