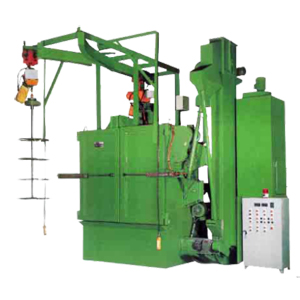

RAIL CHAIN HOIST TYPE SHOT BLASTING M/C

RAIL CHAIN HOIST TYPE SHOT BLASTING M/C

Model:
CH-103
Country of Origin:
Taiwan

Detail Specifications / Descriptions

This m/c is employed hoist and rotating hanger to hang work piece, for then, the work piece surface will be shoted steel ball by shot wheelabrator in hi-speed and continuously, but the hang work piece turned in low speed, Since, the work piece surface will be shoted evenly, after that, the casting sand, scaling & burring etc, which adhesived on the work piece surface will be cleaned soon, the processed work piece will be shined & burnished and convenient for next step processing.

The人 rail be installed which convenient for one set hanging work piece be processed shotblasting and another set can be hang work piece for preparing,those are processed reciprocatively for achieving the great advantages.

This m/c is suitable for medium or large size casting work piece, zinc & aluminium die castings or other work piece which can be hanged etc , not mentioned detaily.

Max. load capacity:1,000kg
Max. load height:1,500mm
No. of wheelabrator:3~4
Shoting power:7 - 1/2HP /10HP / 15HP x 2 / 3 / 4
Hanging power:3HPx2
Elevating shot power:1HP
Dust collecting power:3HP
Used floor space[LXW]:4m2
N.W.:6,000kg
We reserve the right to modify the designs & specifications. so that,those are subjected to change, without prior notice.
Machine made available on request.
