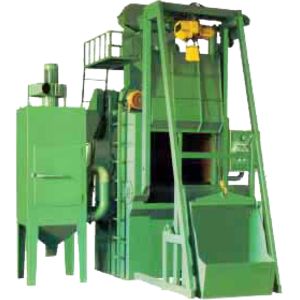

TUMBLING BARREL BUCKET DUMPING SHOT BLASTING M/C

TUMBLING BARREL BUCKET DUMPING SHOT BLASTING M/C

Model:
CH-101
Country of Origin:
Taiwan

Detail Specifications / Descriptions

This m/c processing is combined the tumbling barrel and dumping bucket which convenient for storage small castings, zinc & aluminium die castings and the odds can be loaded in whole, the processing work piece be dumped in tumbling barrel which rotated in low speed and continuously, meanwhile, the work piece surface will be shoted steel-ball by shot wheelabrators in hi-speed and continuously, after then, the casting sand, scaling & burring etc., which adhesived on the work piece surface will be cleaned, the processed work piece will be shined & burnished and convenient for next step procesings.

Simple of loading & unloading and employed dumping bucket for loading, as for unloading which just reverse rotating of tumbling barrel and processed work piece will be unloaded.

Handling capacity:300kg/times
Shoting power:15HP / 20HP
Elevating shot power:1HP
Helical collecting power:1HP
Tumbling barrel driving power:1HP
Dust collecting power:2HP
Bucket dumping power:3HP
Used floor space[LXW]:3m2
N.W.:2,500kg

We reserve the right to modify the designs & specifications. so that,those are subjected to change, without prior notice.
Machine made available on request.
