High Precision Large Format Optoelectronics Screen Printing Machine

The high precision printing table is especially suitable for printing photoelectric products such as touch panels, EL films, BEF films, LGP panels, ITO glasses etc.

Product Feature

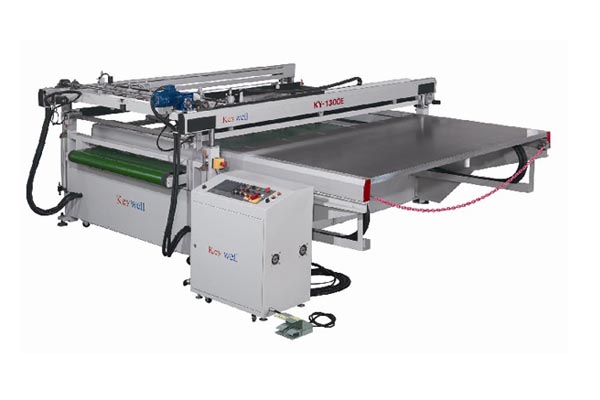

Keywell Large Format Table Sliding Screen Printing Machine E/EL types were evolved from “G/GL machines. The machines are outstanding with excellent functions. Besides the elegant appearance, the high flatness printing is especially for the high quality printing.

Printing head: The printing direction is from left to right (long stroke). The printing head is driven by servo motor + precise linear rail and timing belt. The printing stroke is set by sensor. Equip functions of printing/coating speed adjustment, squeegee/coater angle adjustment, constant printing pressure setting and non-ink dropping device (very suitable for overall printing on the light pervious material). Without moving screen frame, the repeated printing times can be set if request.

Screen frame: Screen frame is mounted on the frame bases which on the long sides and locked by pneumatic clamp. The middle section of the screen frame will not sink, so the ink coating can be even to have good printing result. The frame height is adjustable by magnetic meter with HMI touch screen according to the thickness of the substrate.

Printing table: Constructed by aero-purpose aluminum alloy plate with honeycomb style interior, the surface is high precision processed and coated with hard chromium. Table is with vacuum function and blow regulator. The linear rail which on both left & right sides for supporting table. The table is driven by SEW AC inverter motor with accurate registration.

Safety: Table in/out safety chain with sensor, emergency stop buttons at four corners as well as on the operation panel, lifting cylinders for supporting screen frame (when screen frame lift to the top position for checking or cleaning, these four cylinders move up to ensure safety of the operator automatically), table without movement when the screen frame not in the middle limit position.

Protection: Multi-function of the protection - The power input lamp flashes and the machine not working when the power connection is wrong or the air pressure has not reached the requirement. With motor protector and control circuit fuse for further protection.

(EL type is with auto take-off device):
