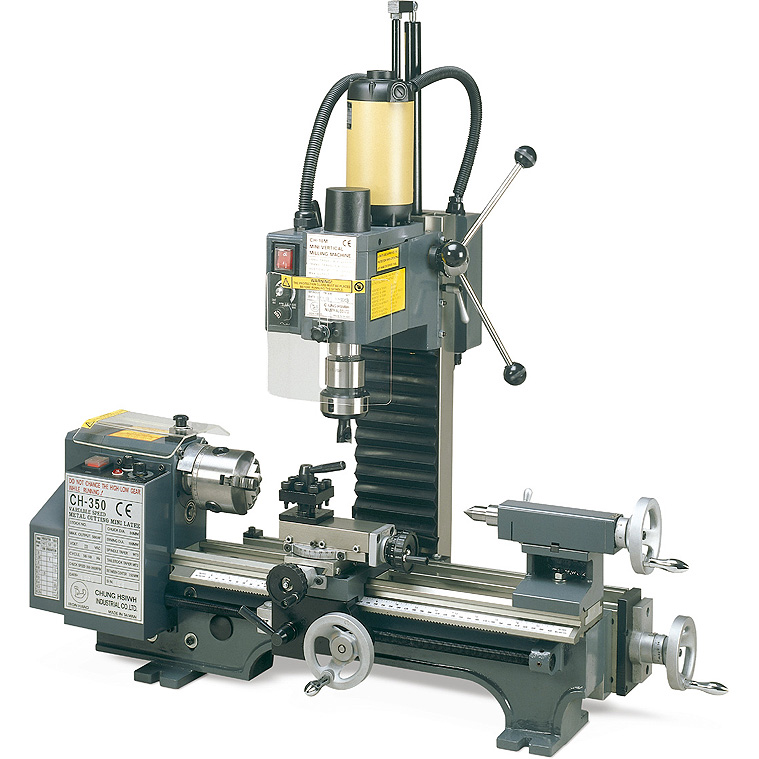

Compound-Type Table Lathe & Milling Machine

Compound-Type Table Lathe & Milling Machine

Model:

CH-350LM CH-350LMA

Detail Specifications / Descriptions
Turning, milling & drilling compound table
Saves second-cycle-processing time and increases workpiece precision
for milling
Nominal Size

Swing over bed: 180mm (7")
Swing over cross slide: 100mm (4")
Distance between center: 350mm (13-3/4")
Bed

Width of the bed face: 83mm (3-2/8")
Total length of the bed: 670mm (26")
Spindle

Spindle bore: 20mm (13/16")
3-jaw chuck spindle bore: 16mm (5/8")
Spindle speeds: Variable speeds
Range of spindle speeds: From 300 to 2900 rpm
Dividing degree: min. 2°
Max. Output

500W (DC motor)
Thread

Lead screw: 16mm (5/8") Dia. X 16T.P.I. or 1.5mm pitch
Inch threads: 12-52 T.P.I.
Metric threads: 0.25-1.5mm pitch
Tool Slide

Cross slide travel: 75mm (3")
Compound rest travel: 50mm (2")
Max. size cutting tool: 12mm x 12mm (1/2")
Tail-stock

Spindle travel: 42 mm (1-21/32")
Taper or center: M.T.NO.2


for milling
Longitudinal (X) Axis

300mm (12")
Vertical (Z) Axis

215mm (8")
Max. Output

500W (DC motor)
Spindle Speed

300-2900 R.P.M.
Spindle Taper

M.T.NO.3
Worktable Size

100mm x 150mm
Spindle Nose to Table

300mm (12")
T Slot

12mm (1/2")
Spindle Rotary Angle

+45°~-45°
Drilling Capacity (Max.)

13mm (1/2")
End Milling Capacity (Max.)

13mm (1/2")
Face Milling Capacity (Max.)

20mm (3/4")
Machine Dimensions

810mm x 470mm x 560mm
Packing:

Net Weight: 65kgs
Gross Weight: 77kgs
15.5 cu. Ft.
940mm x 880mm x 530mm (L x W x H)
*Made in Taiwan and exported to Japan and Europe.
*Leading brand, quality guaranteed.
*The best after-sales service and reasonable prices .
