Beveling Auxiliary Base(15~45 degree)

Beveling Auxiliary Base(15~45 degree)

Model:
GPW-A01
Country of Origin:
Taiwan

Detail Specifications / Descriptions

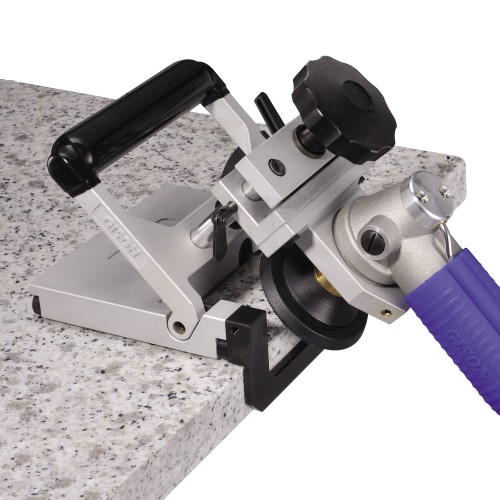

The Beveling Auxiliary Base, available from GISON, has the ability to make some GISON's Wet Air Polisher into a precision straight and beveled edge polishing tool.
Whether edges are being prepared for a seamless countertop installation or to give a “fancy” Hollywood Bevel as an edge treatment, the Beveling Auxiliary Base will provide a secured polishing angle (between 15 to 45 degrees).
The installation and dismantling is easy so the wet air polisher can be used for many other applications.

Wet Air Chamfering Machine, Wet Air Beveling Machine:
Chamfering Auxiliary Base
Wet Air Beveller for Stone,Granite,Marble / Wet Air Beveling for Stone,Granite,Marble
Wet Air Chamfer for Stone,Granite,Marble / Wet Air Chamfering for Stone,Granite,Marble

Specification:
•Beveling Angle : 15 ~ 45 degree
•Beveling Depth : 0.1 ~ 10 mm
•Max. Pad Size : 4" (100 mm)
•Length : 200 mm
•Width : 185 mm
•Height : 170 mm
•Weight : 1.62 kgs
•Packing: 8pcs/2.6cuft/G:17.5kgs
•* Without Wet Air Sander / Polisher *

Features:
•Simple Operation
•Perfect Finishing
•Time Saving
•Adjust the desirable bevel angle from 15 ~45 degree.
•Adjust the beveling depth from 0.1~10 mm
•Mocrometric scale to calibrate te chamfering depth
•8 rolling wheels to facilitate moving.
•Designed to fit various GISON's sanders / polishers /grinders, simply by changing the clamp.
•Quick change the abrasive / polishing pad while working.

Applications:
•GPW-A01 Beveling Auxiliary Base is used together with GISON's wet air sanders / polishers to accurately create beveled edges for stones between 15~45 degrees. This new product will remove the guess work and inconsistency normally exist when fabricators polish beveled stone edges with diamond polishing pads. It accepts maximum 4" back holder and 4" diamond polishing pads. The product is also called Wet Air Beveling Machine, Wet Air Beceller, Wet Air Chamfering Machine or Wet Air Chamfer.
•Also with 90-degree adapting clamp, it can be used to polish straight edges easily just as GPW-A02B auxiliary base does. Instead of buying both A01 and A02B auxiliary base, now you only need to buy the 90-degree adapting clamp to polish bevel and straight edge.
•Caution: Although the rollers for the base are made of nylon, it is possible that they may cause minor scratches on the surface of granite. To prevent that from occurring, we recommend that the polished surface be covered with masking tape before using this product.
