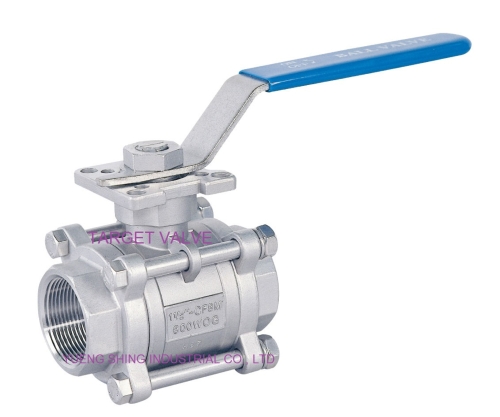

3-PC M3 type Ball Valve

3-PC M3 type Ball Valve

Model:
H3TM3
Material:
ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A351-CF3M

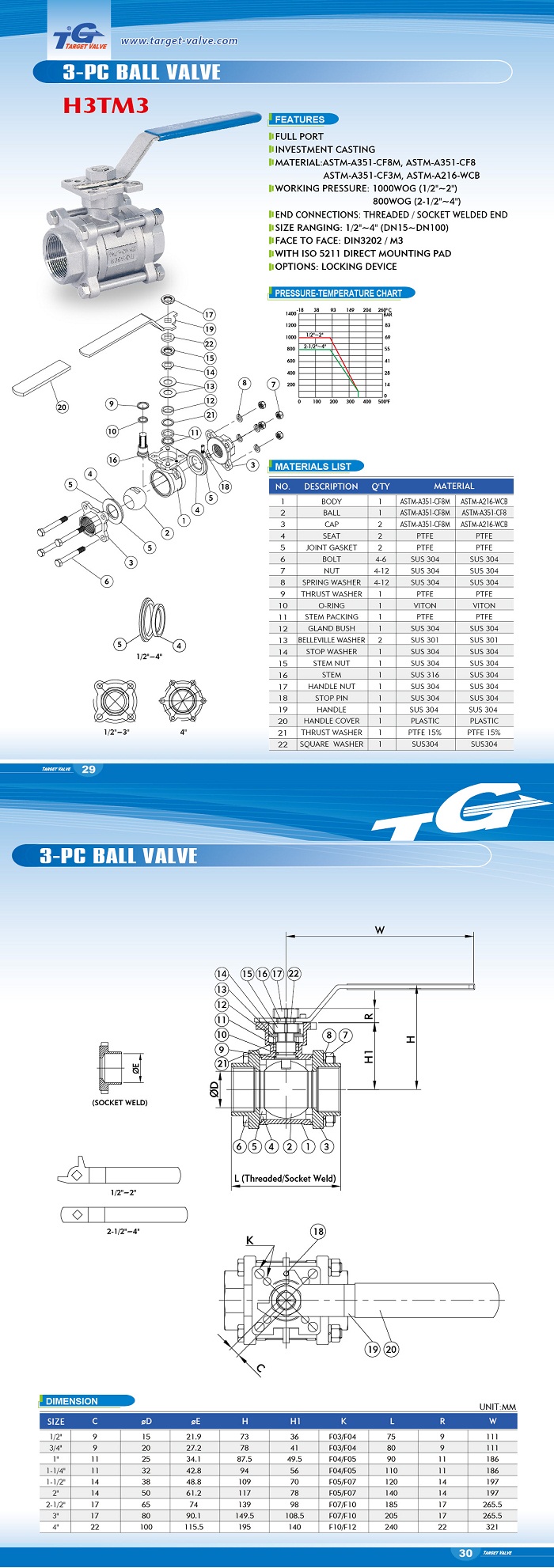

Detail Specifications / Descriptions

✽ Full Port
✽ Investment Casting
✽ Material: ASTM-A351-CF8M, ASTM-A351-CF8, ASTM-A351-CF3M, ASTM-A216-WCB
✽ Working Pressure: 1000WOG (1/4" ~ 2") ; 800WOG (2-1/2" ~ 4")
✽ Size Ranging: 1/4" ~ 4" (DN8 ~ DN100)
✽ Face To Face: DIN3202 M3
✽ End Connections: DIN2999/ DIN259/ BSPT/ NPT/ SOCKET WELDED END (ANSI B16.25)
✽ With ISO 5211 Direct Mounting Pad
✽ Options: Lever operation/ Locking Device

3-PC M3 type Ball Valve
