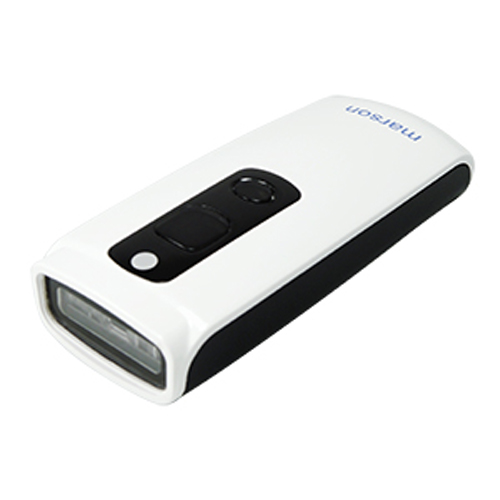

MT1297 LONG BATTERY LIFE MINI POCKET BARCODE DATA COLLECTOR FOR LOGISTICS WAREHOUSE MANAGEMENT

MT1297 LONG BATTERY LIFE MINI POCKET BARCODE DATA COLLECTOR FOR LOGISTICS WAREHOUSE MANAGEMENT

Model:
MT1297

Detail Specifications / Descriptions

Introduction Being pocket-sized, MT1297 is designed to meet the scanning needs in healthcare, field sales and field service. Sustained by rechargeable Li-ion battery, MT1297 can operate all day long to work across shifts and increase productivity. When functioning as a memory scanner, it can hold up to 8,000 scans; when functioning as a wireless scanner, it enables instantaneous data transmission to smartphones and tablet, keeping system updated. Features Ergonomic & Lightweight Industrial Protection Ease of Mobility Wide Compatibility Data Security Superior Performance Long Battery Life Vibrating Indicator Green LED Illumination User-friendly Operation Anti-microbial Protection Specifications Optic & Performance Light Source 525nm visible green LED 635nm visible red LED Aimer N/A Sensor 2500 Pixels CCD Scan Rate 200 Scans / sec Resolution 4mil/ 0.1mm (3mil readable) Scan Angle 40° Print Contrast 30% Width of Field 140mm (13Mil Code39) Memory Inventory Mode: 2MB (8,000 barcodes) Batch Mode: 2KB (140 barcodes) D.O.F (Environment: 800 lux) 4 Mil Code39: 20~85mm (4 digits) 5 Mil Code39: 30~110mm (4 digits) 10 Mil Code39: 30~220mm (5 digits) 15 Mil Code39: 40~270mm (5 digits) 13 Mil UPC/EAN: 30~250mm (13 digits) Physical Characteristics Dimension W43×L103×H23 mm Weight 70g Color White Material PC Cable 1.5M (Micro USB cable) Trigger Scan Button iOS Hotkey Wireless Trigger (via BT) Indicator Buzzer, LED, Vibrator Power Operation Voltage 3.7 VDC ± 5% Working Current < 280mA Standby Current < 80mA Idle Current < 500uA Battery 3.7 V, 1100mAh, Lithium battery Number of Scan (per full charge) > 10,000 scans (1 scan/ 5 secs, Bluetooth connected) Connectivity Radio Bluetooth 2.1 + EDR (Class2) Range 30 ft./ 10m (line of sight) Interface/ Profile SPP (Android, Mac, Windows) HID (Android, iOS, Windows) User Environment Operating Temperature -20~60˚C Storage Temperature -20~65˚C Humidity 0%~95%RH (Non-condensing) Drop Durability 1.8M (w/ Silicone cover) Sealing IP55 (w/ Silicone cover) Ambient Light 70,000 Lux (Fluorescent Light) 1D Symbologies UPC-A/UPC-E, EAN-8/EAN-13, Industrial 2 of 5, Codabar, Matrix 2 of 5, Code 11, Code 93, Code 32, Code 128, Standard Code 39, Full ASCII Code 39, Interleaved 2 of 5, China Postal Code, MSI Plessy Code, UK Plessy Code, EAN/UCC 128, Telepen Code, IATA Code, GS1 Databar Regulatory ESD Functional after 4KV contact, 8KV Air discharge EMC FCC Class B, CE Safety WEEE, RoHS 2.0
