ALL GAIN INDUSTRY CO., LTD.

Product Information - Worm Drive Hose Clamp

Click for a larger picture

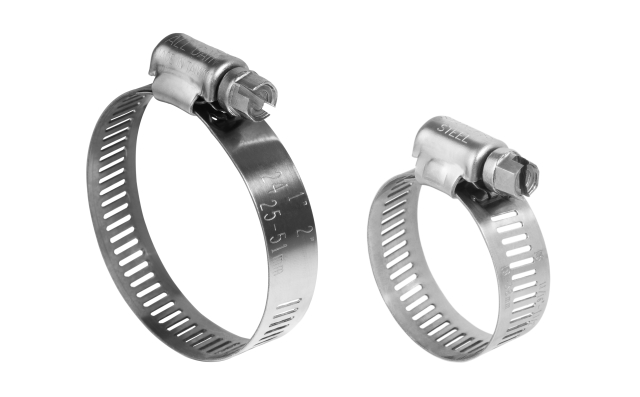

Worm Drive Hose Clamp

> Detail Specifications / Descriptions

Worm Drive Hose Clamps
	Diameter Range				Packing / CTN
No.	Inch	mm	AISI 304	pcs	G.W.	cu.ft.
No.	Min. to Max.	Min. to Max.	AISI 304	pcs	G.W.	cu.ft.
Regular clamp with 12.7mm or 14.2mm band
6	3/8"-7/8"	10-22	0.6	1,000	19.0	1.3
8	7/16"-1"	11-25	0.6	1,000	19.3	1.3
10	9/16"-1 1/16"	14-27	0.6	1,000	19.5	1.3
12	1 1/16"-1 1/4"	18-32	0.6	1,000	20	1.3
16	1 3/16"-1 1/2"	21-38	0.6	1,000	21.1	1.7
20	1 3/16"-1 3/4"	21-44	0.6	1,000	23.2	2.1
24	1 1/16"-2"	27-51	0.6	1,000	24.3	2.3
28	1 5/16"-2" 1/4"	33-57	0.6	1,000	27.4	2.8
32	1 9/16"-2" 1/2"	40-63	0.6	1,000	29.6	3.2
36	1 13/16"-2" 3/4"	46-70	0.6	1,000	31.7	3.8
40	2 1/16"-3"	52-76	0.6	500	17.2	2.3
44	2 5/16"-3 1/4"	59-82	0.6	500	18.3	2.5
48	2 9/16"-3 1/2"	65-89	0.6	500	18.4	2.8
52	2 13/16"-3 3/4"	72-95	0.6	500	19.5	3.0
56	3 1/16"-4"	78-101	0.6	500	19.6	3.2
60	3 5/16"-4 1/4"	84-108	0.6	500	21.4	3.2
64	3 9/16"-4 1/2"	91-114	0.6	500	21.5	3.2
72	4 1/8"-5"	105-127	0.6	250	12.0	3.2
80	4 5/8"-5 1/2"	118-140	0.6	250	13.0	3.9
88	5 1/8"-6"	130-152	0.6	250	14.0	4.5
96	5 5/8"-6 1/2"	143-165	0.6	250	15.0	4.5
104	6 1/8"-7"	155-178	0.6	250	16.0	4.5

Materials:
A3: Band--AISI304 Housing--AISI304 Screw--AISI302
Used for Marine, Underground, and other
High Corrosive Applications

> Specification Image

> Related Products

Worm Drive Hose Clamp

Contact Information

Company:	ALL GAIN INDUSTRY CO., LTD.
Address:	1st Fl., No. 23, Alley 26, Lane 313, Po-an St., Sec. 1, Shulin, Taipei Hsien, Taiwan 238
Telephone:	886-2-2686-6551, 2682-9522
Fax:	886-2-2682-1383
E-Mail:	allgain@ms10.hinet.net [ Inquire Now ]
URL:	www.allgain.com.tw www.cens.com/allgain
