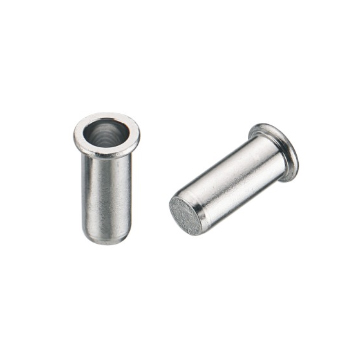

Flat Head Rivet Nuts

Flat Head Rivet Nuts

Model:
MM CL
Country of Origin:
Taiwan
Material:
Stainless Steel

Detail Specifications / Descriptions

Flat Head Cylindrical Threaded Inserts, Short Type, Closed Type
We provide professional Rivet Nuts with various materials, such as Stainless Steel Rivet Nuts, Aluminum Rivet Nuts, Steel Rivet Nuts and Brass Rivet Nuts. In addition, we also offer Flat Head Cylindrical Threaded Inserts with durable quality.


PART NO.: SS. MM4-CL
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.5
HOLE SIZE+0.1/-0: 6.00
A±0.3: 9.00
B max.: 5.97
C±0.3: 16.50
H±0.2: 0.80

PART NO.: SS. MM5-CL
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 10.00
B max.: 6.97
C±0.3: 19.00
H±0.2: 1.00

PART NO.: SS. MM6-CL
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 12.00
B max.: 8.97
C±0.3: 22.50
H±0.2: 1.50

PART NO.: SS. MM8-CL
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 17.00
B max.: 12.97
C±0.3: 30.00
H±0.2: 2.00

PART NO.: SS. MM10-CL
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-4.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 17.00
B max.: 12.97
C±0.3: 30.00
H±0.2: 2.00
