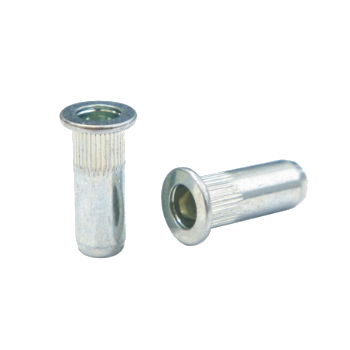

Flat Head Rivet Nuts
- Model:
- MF CL
- Country of Origin:
- Taiwan
- Material:
- Stainless Steel
Detail Specifications / Descriptions
Knurled Cylindrical Threaded Inserts, Flat Head, Closed Type
Our company is one of the main producers of Knurled Nut and Stainless Steel Rivet Nut in Taiwan, and is highly regarded for quality products.
PART NO.: SS. MF4-CL
THREAD SIZE: M4x0.7
GRIP RANGE: 0.5-2.5
HOLE SIZE+0.1/-0: 6.00
A±0.3: 9.00
B max.: 5.97
C±0.3: 16.50
H±0.2: 1.00
PART NO.: SS. MF5-CL
THREAD SIZE: M5x0.8
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 7.00
A±0.3: 10.00
B max.: 6.97
C±0.3: 19.00
H±0.2: 1.00
PART NO.: SS. MF6-CL
THREAD SIZE: M6x1.0
GRIP RANGE: 0.5-3.0
HOLE SIZE+0.1/-0: 9.00
A±0.3: 12.00
B max.: 8.97
C±0.3: 22.50
H±0.2: 1.50
PART NO.: SS. MF8-CL
THREAD SIZE: M8x1.25
GRIP RANGE: 0.7-3.0
HOLE SIZE+0.1/-0: 11.00
A±0.3: 15.00
B max.: 10.97
C±0.3: 25.50
H±0.2: 1.50
PART NO.: SS. MF10-CL
THREAD SIZE: M10x1.5
GRIP RANGE: 1.0-4.0
HOLE SIZE+0.1/-0: 13.00
A±0.3: 17.00
B max.: 12.97
C±0.3: 30.00
H±0.2: 2.00
