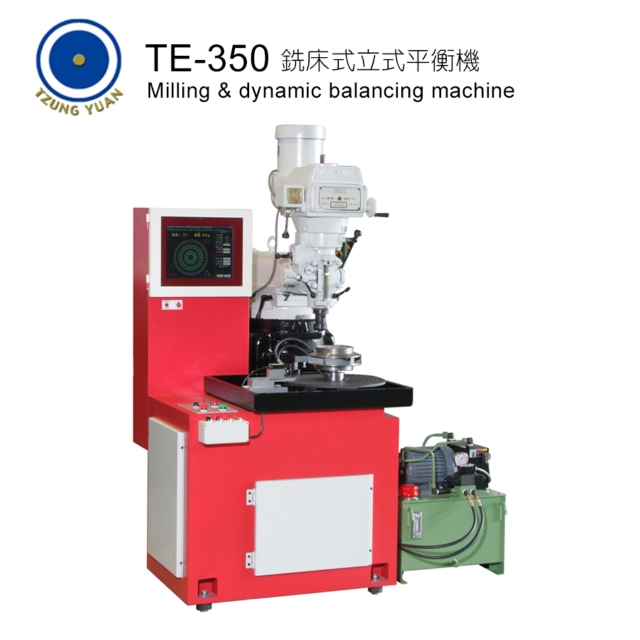

Milling & dynamic balancing machine
Hot- Model:
- TE-350
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
| Features: |
| Specially designed for the balancing machine that detection and correction of rotation wheel, gears, emery wheels, ceiling fan, suction fan, pump blade, clutches, and the rotating round disk type work piece.Industrial computer pointer ray diagram, uneven measure and angle, displayed simultaneously with the drilling machine correction can be completed quickly corrected. |
Model | TE-310 | TE-330 | TE-350 |
Weight range of Workpiece | 0.5 ~ 10kg | 1 ~ 30kg | 2 ~ 50kg |
Workpiece diameter | 500mm MAX | ||
Speed R.P.M. | 1,000 - 1,500 RPM | ||
Precision | 0.4g | ||
Angle position | Manual,Autocontrol | ||
Drive motor | Brand according to customer selection 2HP | Brand according to customer selection 5HP | |
Frequency inverter | Brand according to customer selection | ||
Display | 22” Touch Screen | ||
Laser Scanner | Scanner(Optional) | ||
Processing methods | Milling | ||
Hydraulic system | Hydraulic control | ||
Dimension (L x W x H) | 910 x 910 x 1,800 mm | 1,250 x 910 x 1,800 | |
Weight | 600 Kg | 700 Kg | |
