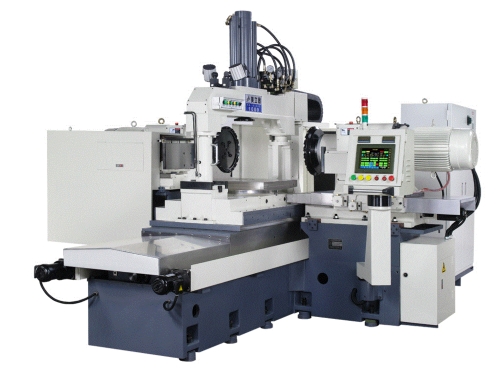

NC Double Sided Milling Machine

NC Double Sided Milling Machine

Model:
HM-2250DS-1000
Country of Origin:
Taiwan

Detail Specifications / Descriptions

STANDARD FEATURES
■One piece rigid construction machine base.
■Heavy duty cutting spindle (Equivalent NT50) X and Y-axis.
■Z-axis precision scraped V and flat guide way for heavy duty cutting.
■All guides are TURCITE-B coated and precision scraped.
■Z-axis ball screw half is soaked in lubrication oil, no need for lubrication.
■Powerful vertical clamp hydraulic cylinder.
■HM-1500DS-600 with one main cylinder, the other models with one main cylinder and two auxiliary hydraulic cylinders.
■4 axes control, Z (longitude) X, Y(L and R cutting spindle) and A (precision index table).
■HMI user friendly touch screen with dialogic data input, self alarm diagnosis and alarm message display.
■Electric Cabinet with air cooling system.
■Auto index table with servo control A axis.
■90° align stopper for easy setup of the workpiece.
■Auto detecting device for measuring the workpiece before machining. l Complete set of hydraulic system.
■Pnematic system for air blow and detecting device.
■Screw type chip conveyor : 2 sets.

OPTIONAL EQUIPMENT
■10'(250 mm) R&L Cutters.
■CE specification.
■Spindle temperature compensation system.
■special jig fixture design for HM-2250DS6-SA.
■Quick Response Code.
■Automated measurement after machining (QC Measurement).
