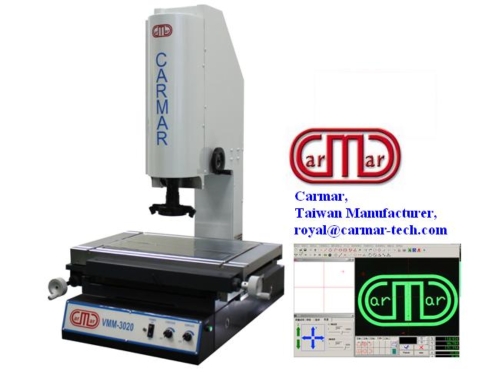

Video Measuring Machine

Video Measuring Machine

Model:
VMM
Country of Origin:
Taiwan

Detail Specifications / Descriptions

VMM-4030S/D
Stage Size (mm): 606 x 466
Glass Size (mm): 450 x 350
X/Y Travel (mm): 400 x 300
Weight(kg): 240
Dimensions (mm): 970 x 670 x 940
Z axis travel (mm): 150
Z working range (mm): 105
Accuracy: ≤ ( 3 + L/75 )μm ; L: measuring length (mm)
Measuring Software: M3D

Video System:
CCD Camera = Colour 1/3“ CCD Camera
Zoom Lens = Standard Zoom Lens,
Magnification of field lens 0.7X - 4.5X
Total Magnifications 40X - 255X
Object View 7mm - 1.1mm

Lightening System: Adjustable LED Surface and Transmission illumination

Power Supply: AC220V/110V 50/60 Hz
