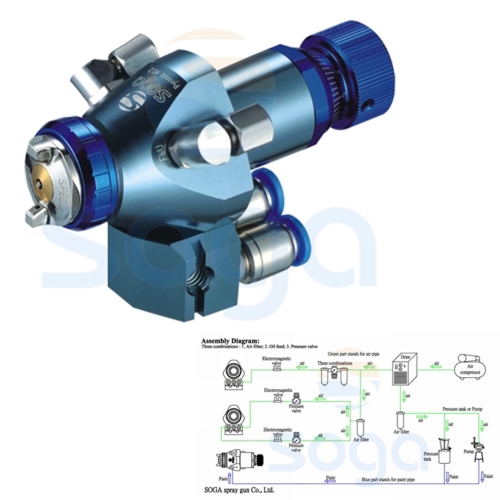

Automatic spray gun /Auto spray gun of high effciency for robot

Automatic spray gun /Auto spray gun of high effciency for robot

Model:

GAR-110-SPECIAL

Country of Origin:

Taiwan

Detail Specifications / Descriptions
Product Details
•Low air pressure, suggest (CAP1.6kg/cm2,FAN1.4kg/cm2), high viscosity to save paint
•Small nozzle orifice,Pyramid-110∅0.5mm,Pyramid-210∅0.8mm
•Tiny atomized particle, well-distributed, intensive paint, no over atomization, stable
•Control of atomizing air and shaping air is set outside the robot. To adjust air pressure wishout stopping working. Easy control.
•Two blacking holes. One for new material and the other for recycled material. Easy to clean the pipe
•Special spray cap design. Easy maintenance
•Nozzle and thimble made by SUS303 stainless material, water paint available
•Thimbles are made up of Teflon obturating ring. Solvent, acid and alkali resistant

Model:Gar-110-special-055
Type of feed: Press
Nozzle orifice Ømm(in):0.5(0.020)
Applicable spray cap: SPECIAL
CAP Air pressure MPa (bar/PSI):0.16(1.6/23)
FAN Air pressure MPa (bar/PSI):0.14(1.4/20)
Fluid output ml/min: 30
Air consumption 1/min (cfm): 180(6.3)
Pattern width mm(in): 90(3.5)
Weight g(lbs): 360 (0.79)


Product Remarks
Spray distance:100mm Paint viscosity:9sec/NK-2 Fluid nipple:1/8PF Air nipple:1/8PF CYL nipple1/8PF
