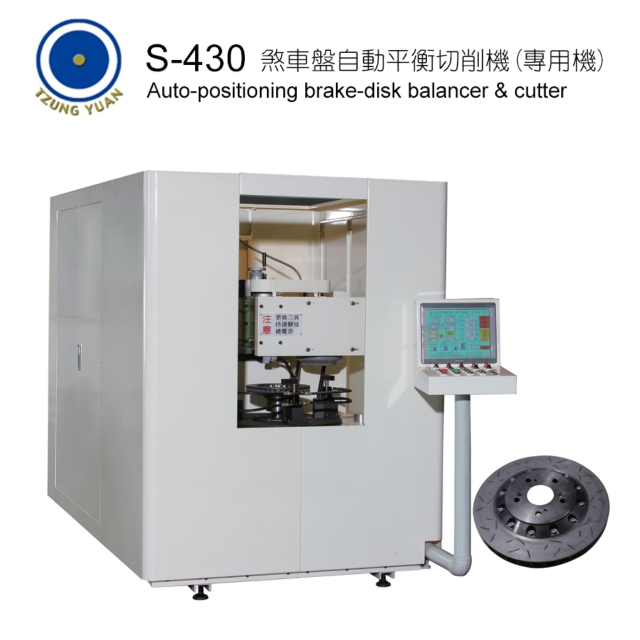

Auto-positioning brake-disk balancer & cutter
Hot- Model:
- S-430
- Country of Origin:
- Taiwan
Detail Specifications / Descriptions
Features:
1.Automatic position manufacturing fast and accurate.
2.Digital testing reports, through SD card or USB send it to computer.
3.Setting ISO testing level or enter own unqualified amount.
4.Together w/ vacuum cleaner to clean iron fillings.(Optional equipment)
5.22” touch screen, showing unbalance angle, weight, speed.
6.Parameter setting can choose it directly. (Workpiece diameter,weight, qualified amount, speed, etc.)
7.Laser scanner easy to manage products. (Optional equipment)
8.Manufacture, repair, research and development all made in Taiwan.
9.Industrial PLC control, increasing system stability.
Specification | S-430 |
Machine Size: (L*W*H) | 2000*1720*1890(mm) |
Machine Weight | 2500 (Kg) |
Power | 3φ 220 (V) 60 (Hz) |
Speed (R.P.M.) | 1200 (R.P.M.) |
Touch Screen | 22 (inch) |
Laser scanner | Scanner(Optional) |
Function | |
ISO Level | G6.3 |
Accuracy | ±1° |
Detect Minimum Vibration | 0.1g |
Workpiece Size | |
Workpiece Weight | 1~30 Kg |
Workpiece Diameter | 280~440 mm |
