Lab. Mixer

- Introduction -

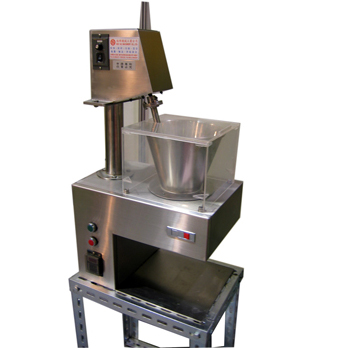

SHE HUI’s Lab Mixer is a new developed small mixer with the same mixing principle of SHE HUI’sNauta Mixer (Reactor).
The mixed powder will be collected into the container from the discharge outlet at the down portion by operating the level. Also, the design of this machine is considered to its convenience in dismantling and clean.

- Features -
1.Apply reasonable mixing principle with extreme short time required in mixing, even in high mixing ratio, it could still get fine mixing product.
2.Less change for deviation after mixed completely that could keep the even quality.
3.Small volume, light and portable.
4.Humidity powder or with bad fluidity is easy to discharged into the collector during the screw and container rotate.
5.The rotation speed of screw may be changed within 100-200 rpm as necessary at random.
6.The machine is not required to feed oil and free of maintenance.
7.Simple structure, and convenient in dismantling and cleaning.

- Specification -
* Model: CMS-0~CMS-30
* Mixing capacity: 2.5L
* Motor: screw speed control motor: 110V 50/60Hz 25W mixing container motor with gear head: 110V 50/60Hz 25W
* Rotation speed: screw 100-200 rpm(changeable) mixing container 4 rpm
* Mixing product collector: 300W * 300D * 200H
* Material of part touching the powder: SUS 304(PUFF #300)
* Rough size: 420W * 150D * 905H
* Rough weigh: 15kg
