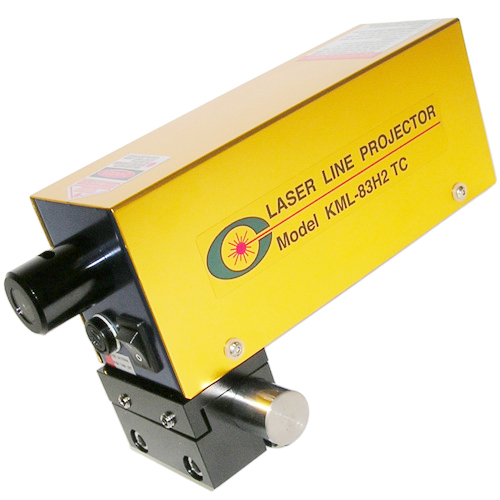

Linear Mark-KML-83H series

Linear Mark-KML-83H series

Model:

KML-83H1TC / KML-83H2TC

Country of Origin:

Taiwan

Detail Specifications / Descriptions
波長Wavelength:630 ~ 650 nm 可見紅光(RED)

輸出功率Output Power:100 mW / 200 mW

標線長度Line Length:10 ~ 50 M / 20 ~ 100 M(INDOOR)

標線寬度Line Width:< 5 mm / <6 mm

輸入電壓Input Voltage:AC 90 ~ 260 V 50 / 60 Hz

操作溫度Operating Temp.:– 10 ~ 50 °C

安全等級Safety Class:Class Ⅲb

使用壽命Lifetimes:>30,000 小時 (hr)

外觀尺寸Dimensions:L 210 X W 60 X H 75 (mm)

重量Weight:"880 ± 20 公克 ( g )"

產品特性
Feature
● 日本工業級雷射二極體
Japanese industrial laser diodes
● 專利可調式出光鏡頭
Idemitsu patent adjustable lens
● 雷射二極體25℃恆溫控制
Laser diodes 25 ℃ constant temperature control
● 工業用設計,穩定性高
Industrial design, high stability
● 雷射光源/光學鏡片密閉充氮處理
Laser light source/optical lenses confined to deal with Nitrogen
● 使用壽命長
Long life

適用行業
Applications
● 木材加工 Wood working
● 鐵材加工 Metal working
● 石材加工 Stone working
● 成衣加工 Garment processing
● 橡膠加工 Rubber processing
特殊規格歡迎來電洽詢
